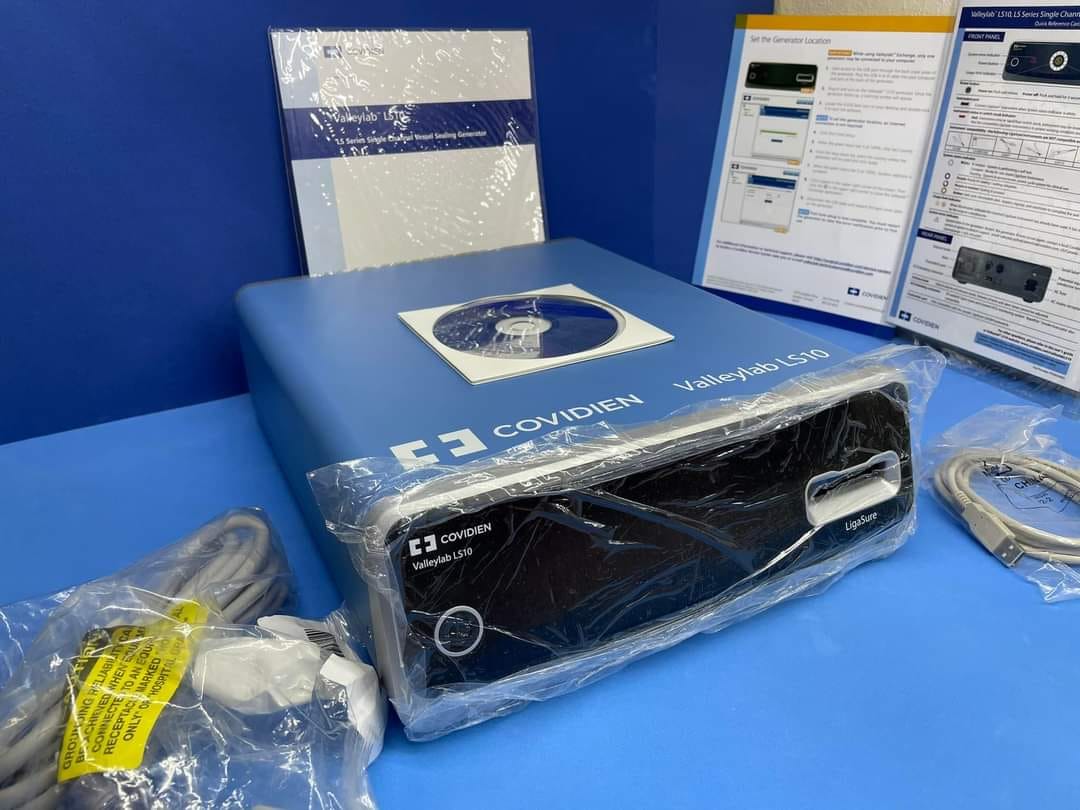

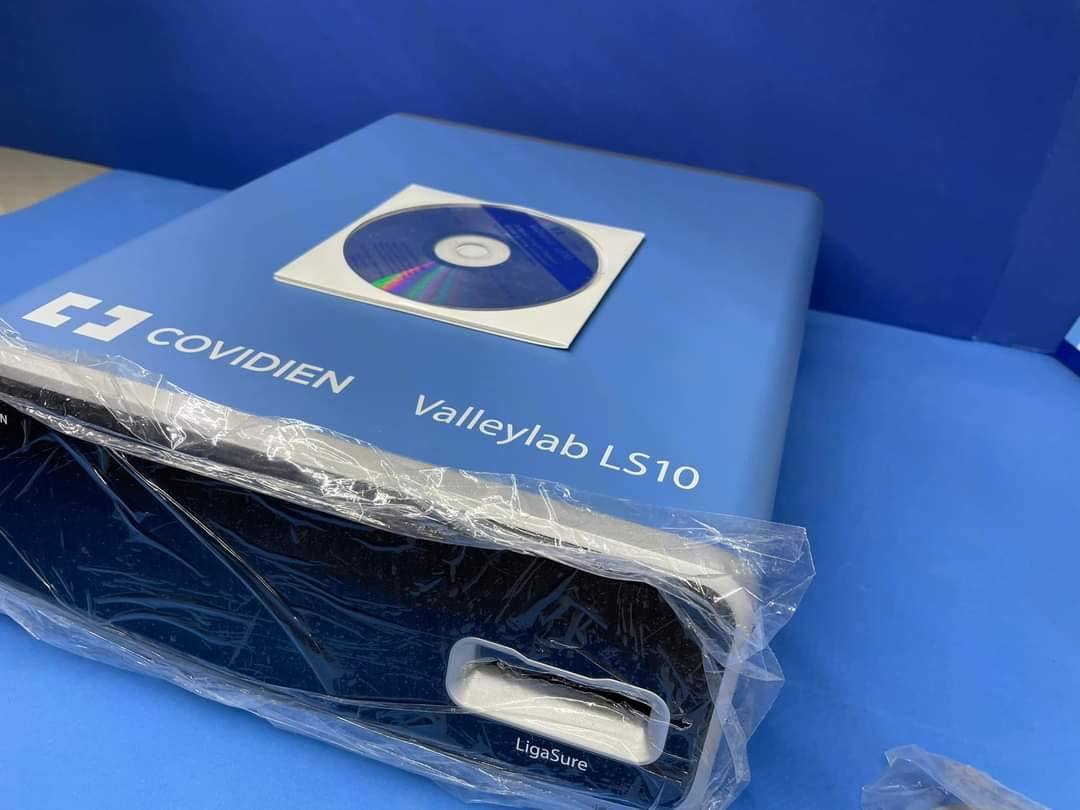

Valleylab - LS Series Single Channel Vessel Sealing Generator - Valleylab Vessel Sealing Generators in Pakistan
Limited Warranty Covidien warrants each covered product listed below to be free from defects in material and workmanship for normal use and service for the period(s) set forth below. Covidien’s obligation under this warranty is limited to the repair or replacement, at its sole option, of any product, or part thereof, which has been returned to it (or its authorized distributor) within the applicable time period shown below after delivery of the product to the original purchaser, and which examination discloses, to Covidien’s satisfaction, that the product is defective. This limited warranty does not apply to any product, or part thereof, which has been repaired or altered in a way so as, in Covidien’s judgment, to affect its stability or reliability, or which has been subjected to misuse, neglect, or accident. The warranty periods for Covidien products are as follows: ValleylabTM LS 10, LS Series Single Channel Vessel Sealing Generator One year from date of shipment All purchased or supplemental software programs or updates 90 days from delivery Notwithstanding any other provision herein or in any other document or communication, Covidien’s liability with respect to this limited warranty and the products sold hereunder shall be limited to the aggregate purchase price for the products sold to the customer. This limited warranty is non-transferable and runs only to the original purchaser of the covered product(s). There are no warranties which extend beyond the terms hereof. Covidien disclaims any liability hereunder or elsewhere in connection with the sale of products and for any form of indirect, tort, or consequential damages. This limited warranty and the rights and obligations hereunder shall be construed under and governed by the laws of the State of Colorado, USA. The sole forum for resolving disputes arising under or relating in any way to this limited warranty is the District Court of the County of Boulder, State of Colorado, USA. Covidien reserves the right to make changes in covered products built or sold by it at any time without incurring any obligation to make the same or similar changes to equipment previously built or sold by it. THE OBLIGATION TO REPAIR OR REPLACE A DEFECTIVE OR NONPERFORMING PRODUCT IS THE SOLE REMEDY OF THE CUSTOMER UNDER THIS LIMITED WARRANTY. EXCEPT AS EXPRESSLY PROVIDED HEREIN, COVIDIEN DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, ORAL OR WRITTEN, WITH RESPECT TO PRODUCTS, INCLUDING WITHOUT LIMITATION ALL IMPLIED WARRANTIES, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
Overview and General Features
The generator is designed to provide a vessel sealing application. It features a simple interface and automatically detects LigaSure instruments and configures the generator accordingly. Safety and diagnostic functionality include automatic fail-safe functions. The generator is a bipolar electrosurgical generator and works with LigaSure instruments as a system. Covidien offers a selection of LigaSure instruments that are fully compatible with this generator. The generator supports only compatible Covidien LigaSure instruments.
Indications for Use
The Valleylab LS10 is an electrosurgical generator containing LigaSure vessel sealing technology. The vessel sealing function is indicated for use in sealing (fusing) vessels up to, and including, 7 mm in diameter, tissue bundles, and lymphatics during general surgery including, but not limited to, surgical specialties such as urologic, vascular, thoracic, gynecologic, plastic and reconstructive, and colorectal. Refer to each instrument’s instructions for use (IFU) for additional indications, warnings, and specific contraindications. The LigaSure system has not been shown to be effective for tubal sterilization or tubal coagulation for sterilization procedures. Do not use this function for these procedures.
LigaSure Mode
The LigaSure vessel sealing mode can be used on arteries, veins, pulmonary vasculature, and lymphatics up to and including 7 mm in diameter and tissue bundles. This system provides precise energy delivery and electrode pressure to vessels for a controlled time period to achieve a complete and permanent fusion of the vessel lumen. The system is designed to produce minimal sticking, charring, and thermal spread to adjacent tissue.
LigaSure Instruments
The LigaSure instruments that complete the Valleylab vessel sealing system include reusable and single-use instruments for open and minimally-invasive procedures. Refer to each instrument’s instruction for use (IFU) for additional indications, warnings, and specific contraindications. The LigaSure function is only available when using Covidien LigaSure instruments. The footswitch will be disabled upon insertion for some LigaSure instruments. To determine which instrument this applies to, conduct the following: 1. Connect a LS0300 (purple) footswitch to the rear panel footswitch connector. 2. Insert a LigaSure instrument into the LigaSure receptacle on the front panel. 3. Attempt to activate the footswitch. 4. If there is an “invalid activation” tone, it may indicate a disabled footswitch for that particular instrument.
Performance Characteristics
General
Output configuration: Isolated output, bipolar electrosurgical generator
Cooling: Natural and forced convection
Display: System Status Indicator - circle LED (12 blocks) shows system status System Error Indicator - triangle LED with exclamation mark Instrument Status Indicator - LED above the LigaSure receptacle Usage Limit Indicator - 2 with a line through it
Mounting: A Covidien cart (UC8009) or a stable, flat surface
Dimensions and Weight
Width 300 mm (11.81 inches) x Depth 377 mm (14.84 inches) x Height 105 mm (4.13 inches) x Weight 5 kg (11 lbs)
USB Port
The software provides an asynchronous serial-communications interface for communicating with an externally-connected device. Equipment connected to the USB port shall comply with IEC 60950 safety of IT equipment. The USB data port is accessible behind the USB/ECG Blanking Port cover on the rear panel. This cover is removed using a tool to access the USB port. USB B-type connector, enumerated with a serial/COM port with 115200 bps baud, 8 data bits, 1 stop bit, no flow control setting in the laptop.
Potential Equalization Conductor
A Potential Equalization Conductor providing a direct connection between the Valleylab Generator and the potential equalization busbar of the electrical installation.
Input Frequency
The system operates within specification at all line-input frequencies between 48 Hz and 62 Hz. The user does not need to reconfigure the system for different line frequencies.
Input Current
The generator draws no more than 8 A at input voltages between 100 V and 240 V.
Backup Power
The generator retains all user-programmed features, calibration, and statistical data when switched off and unplugged. The energy platform operates within specification when switched over to a supplied-line power by hospital backup systems.
ECG Blanking
An ECG blanking port is provided to signal other devices that the generator is active. The receptacle is a 2.5 mm mono jack. It is electrically isolated from the internal ground referenced electronics with the shell electrically connected to the chassis for ESD protection. The ECG blanking port is rated: 12 VDC @ 0.2A.
