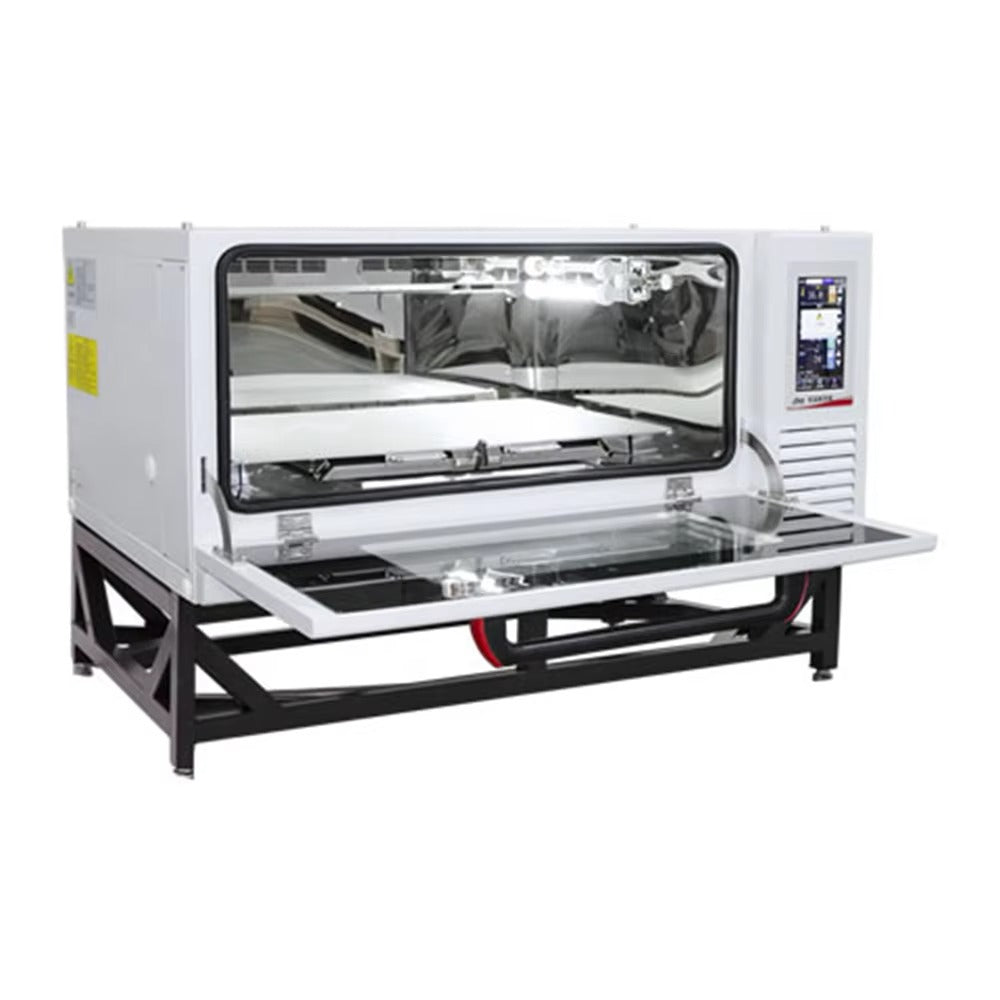

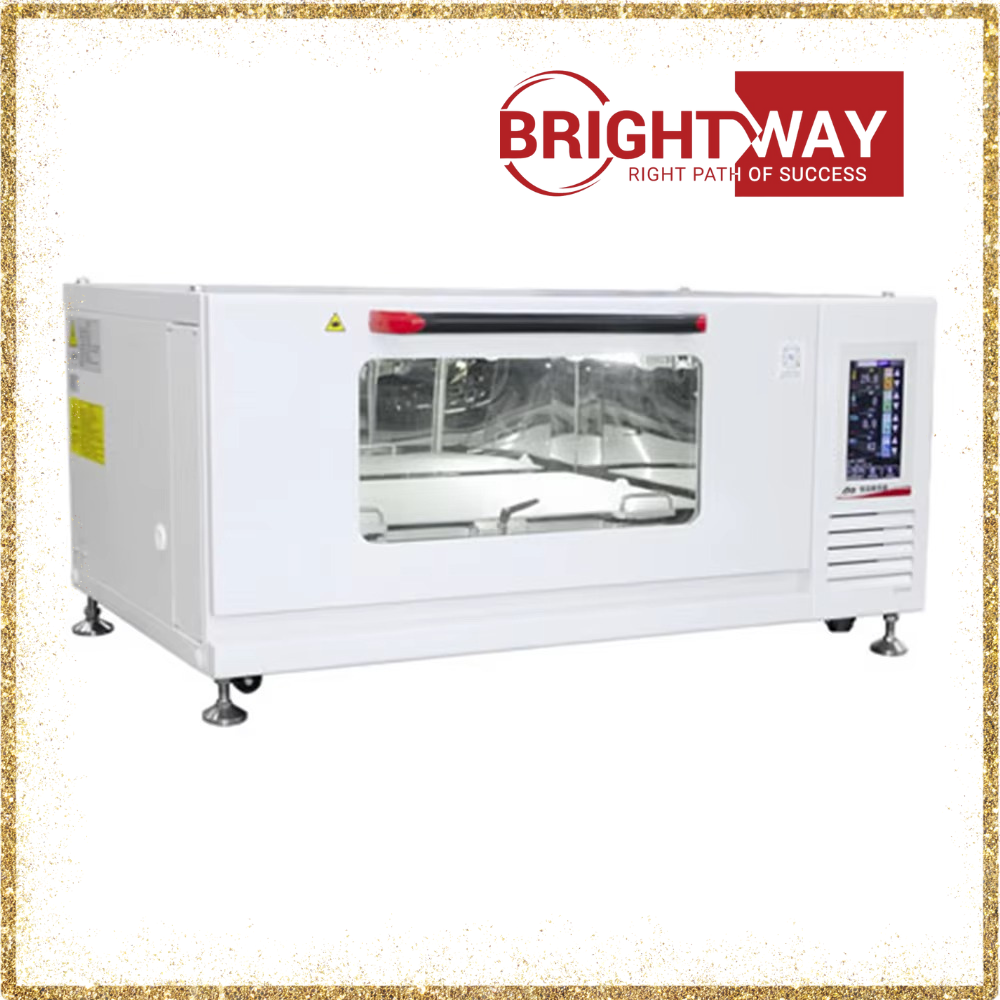

Laboratory Stackable Incubator Shaker CO₂ Controller
Stackable Incubator Shaker Offer By Brightway Pakistan is an advanced laboratory device designed for high-precision cell culture, microbial growth, protein expression, and other biological applications. Equipped with a CO₂ controller, this unit provides optimal environmental conditions required for sensitive organisms and cell lines. Its stackable design allows laboratories to maximize workspace efficiency, making it ideal for research labs, biotech industries, pharmaceutical testing, and academic institutions in Pakistan and worldwide.
Modern laboratories require accuracy, repeatability, and productivity—this Stackable Incubator Shaker delivers all three through innovative engineering, superior temperature stability, and intelligent CO₂ monitoring. This description provides a complete overview of its features, specifications, and professional uses.
Overview of the Stackable Incubator Shaker
The Stackable Incubator Shaker combines high-performance incubation with dynamic shaking capabilities. It ensures continuous, uniform agitation and stable environmental conditions for optimal growth and expression of biological samples. The stackable design allows up to three units to be placed vertically without compromising stability or vibration control, making it perfect for space-limited laboratories.
Key Features of the Stackable Incubator Shaker
1. Space-Saving Stackable Design
This incubator shaker is engineered for vertical stacking, allowing laboratories to increase productivity without requiring additional floor space. Its anti-vibration structure ensures stable performance even when stacked three units high.
2. Advanced CO₂ Control System
Equipped with an integrated CO₂ controller, the unit maintains precise gas concentration for sensitive cell lines.
Key CO₂ features include:
-
Fast CO₂ recovery after door opening
-
High-accuracy infrared (IR) CO₂ sensor
-
Real-time CO₂ monitoring and digital display
-
Adjustable CO₂ range (typically 0–20%)
This makes the Stackable Incubator Shaker ideal for mammalian cell culture and tissue engineering.
3. Precise Temperature Control
The incubation chamber provides uniform temperature distribution through a forced-air convection system.
Typical temperature features include:
-
Range: 4°C above ambient to 60°C
-
Microprocessor-based PID temperature control
-
High thermal insulation for stability
-
Over-temperature protection system
This ensures reproducible and reliable experimental conditions.
4. High-Performance Shaking Mechanism
The shaker platform delivers consistent and uniform motion required for microbial and cell culture growth.
Shaking features include:
-
Speed range: 20–300 RPM
-
Orbital shaking motion (commonly 25 mm orbit)
-
Smooth, quiet operation
-
Large platform to hold various flask sizes (250 ml, 500 ml, 1L, 2L, 5L)
5. Large Viewing Window & Internal Lighting
A built-in tempered glass window allows researchers to monitor samples without disturbing environmental conditions. Internal LED lighting improves visibility and reduces light-induced sample stress.
6. User-Friendly Touchscreen Interface
The digital control panel includes:
-
Touchscreen LCD display
-
Real-time monitoring of temperature, speed, CO₂ levels, and time
-
Programmable operation modes
-
Timer function (0–999 hours)
-
Data logging and alarm notifications
7. Safety & Protection Systems
To ensure reliable and safe operation, the Stackable Incubator Shaker includes:
-
Over-temperature alarm
-
Door-open protection
-
Motor overload protection
-
CO₂ leak detection
-
Auto-stop safety mode
Technical Specifications
| Specification | Details |
|---|---|
| Temperature Range | Ambient +4°C to 60°C |
| Shaking Speed Range | 20–300 RPM |
| Shaking Motion | Orbital (25 mm orbit) |
| CO₂ Range | 0–20% (adjustable) |
| Controller Type | Microprocessor PID controller |
| Display | Full-color touchscreen LCD |
| Platform Size | Multiple platform sizes available |
| Stacking Capacity | Up to 3 units |
| Timer | 0–999 hours |
| Sensor Type | Infrared CO₂ sensor |
| Safety Features | Over-temp alarm, overload protection, door safety |
| Chamber Material | Stainless steel, corrosion-proof |
| Power Supply | 220–240V, 50/60 Hz |
Uses of the Stackable Incubator Shaker
1. Cell Culture Applications
The CO₂-controlled environment makes this device suitable for:
-
Mammalian cell lines
-
Stem cell research
-
Tissue culture
-
Immunology studies
2. Microbial & Bacterial Growth
The stable temperature and shaking speed promote high microbial yield for:
-
Bacteria
-
Yeast
-
Fungi
-
Recombinant protein expression
3. Biotech & Pharmaceutical Research
Pharmaceutical laboratories use the Stackable Incubator Shaker for:
-
Drug screening
-
Enzyme production
-
Vaccine research
-
Quality control testing
4. Academic & Government Research Institutes
Universities and institutes rely on this system for:
-
Genetic engineering
-
Molecular biology experiments
-
Fermentation studies
-
Sample incubation for long-term research
5. Industrial Production & QC
Industrial labs use it for:
-
Large-volume culturing
-
Seed culture preparation
-
Batch-level sample processing
A Stackable Incubator Shaker with CO₂ control is a must-have for modern laboratories that require maximum efficiency, accuracy, and space optimization. With advanced temperature stability, precise CO₂ regulation, high-performance shaking, and a compact stackable design, it supports a wide range of biological and microbiological applications.
