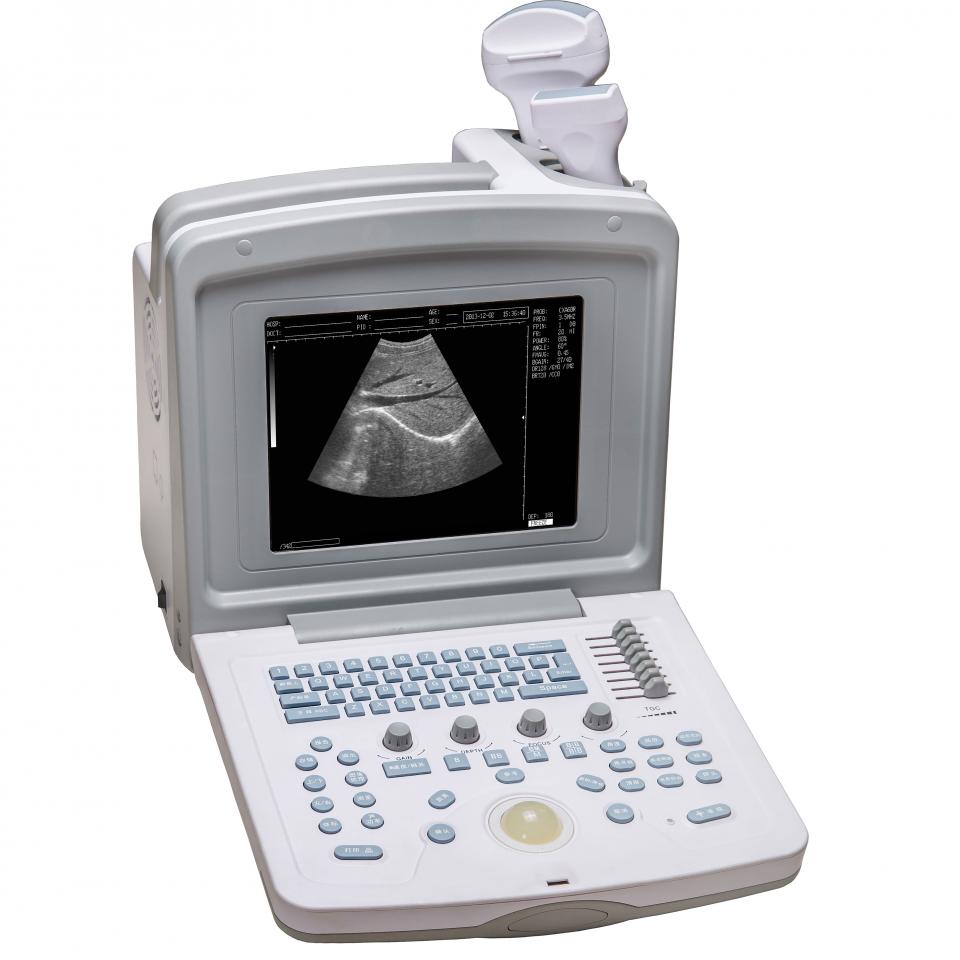

WED-9618 Ultrasound Machine - Full Digital Ultrasonic Diagnostic System - Digital Portable Ultrasound Machine in Pakistan
Portable ultrasound Wed-9618 is the best choice of Welld. It is a cost-effective solution in any specialty, is distinguished by its Full digital technology Beamforming which provides bright and clear image quality. Interchangeable probes offer a wide range of applications.
WED-9618 Ultrasound Diagnostic Apparatus For clinical ultrasonography of abdomen, obstetrics, gynecology, organelle, small organ, superficial organs, urology, cavity, cardiology and cardiovascular.
WED-9618 adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization (DRA), real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS) which can display a high quality, stable and high resolution image. The external Video printer and external monitor display can be realized with the PAL-D Video output port.
All the ultrasound images can download to PC with high speed USB 2.0 port. Various image processing software packages are available.
|Scanning Model||Electronic Linear Array, electronic convex array|
|Image Storage||≥32 frames|
|Scanning Angle||Visible and adjustable|
|Operation Interface||Chinese/English switchable|
|TGC Adjustment||Near Field, Far Field, Total Gain Independent Adjustment|
|Focus Control||Focus Number, Focus Distance, Focus Position Adjustment|
|Image Processing||Image Black/White, Gamma Correction, Edge Enhancement and Histogram|
|Real-time Depth||16 levels are adjustable|
